Broadcast Playout Automation System

SD/HD live sources and SD/HD video content in a range of codec formats can all be mixed for playout in the same playlist.
Operators can change the live playlist, even the event currently on-air.
Graphics functionality provides high-quality graphics for channel branding with logos, lower thirds, tickers, scrolls, and squeeze.

Playout_Boma generates an As-Run log created from the actual content that was played. The logger can be used to perform As-Run log analysis.
Playout_Boma integrates with many third-party NAS storage devices that provide standard SMB/CIFS access and there is no limit to the volume capacity.
Other storage technologies can be used so long as is possible to mount the storage so it appears as a local drive (e.g. Isilon).

responsive manual and automatic control for live event switching
mix different codecs, resolutions and aspect ratios in one playlist
Live switch to incoming SDI or RTP feeds (beta)
Real-time automatic up/down conversion

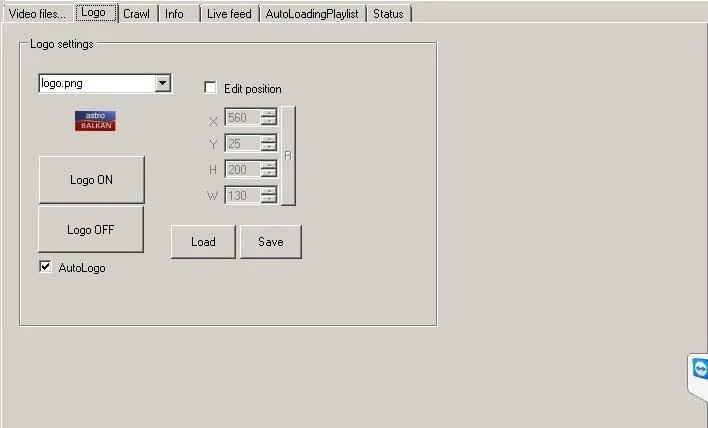

Static or animated logo insertion
Channel branding (butterfly, Today at prime time/Live…)

Play during ingest
Channel output recording
Playlist editing over local network or internet (VPN)
Output in SD, HD and Ultra HD (4K)
Output to SDI or HDMI in SD and HD simultaneously
Streaming to RTP in H.264 or MPEG-2

MACC – Media Asset Checker and Convertor

Media File Checker can perform file analysis as part of its processing with definable pass/fail criteria and different destination folders for each. The primary purpose of this process is to test whether the file will playable by Playout_Boma to further ensure reliability. This is done by using the same file reading process as Playout_Boma to test whether every frame of video and audio within the file can be accessed.

Playout Monitor

Centralized Remote Monitoring for up to 8 playout channels. Warnings and error alarms.

Playlist Editor:

Boma_Playout is a client-server application so with PlaylistEditor you can create and manage playlists over LAN (and VPN) that the Server will play at specified times.
